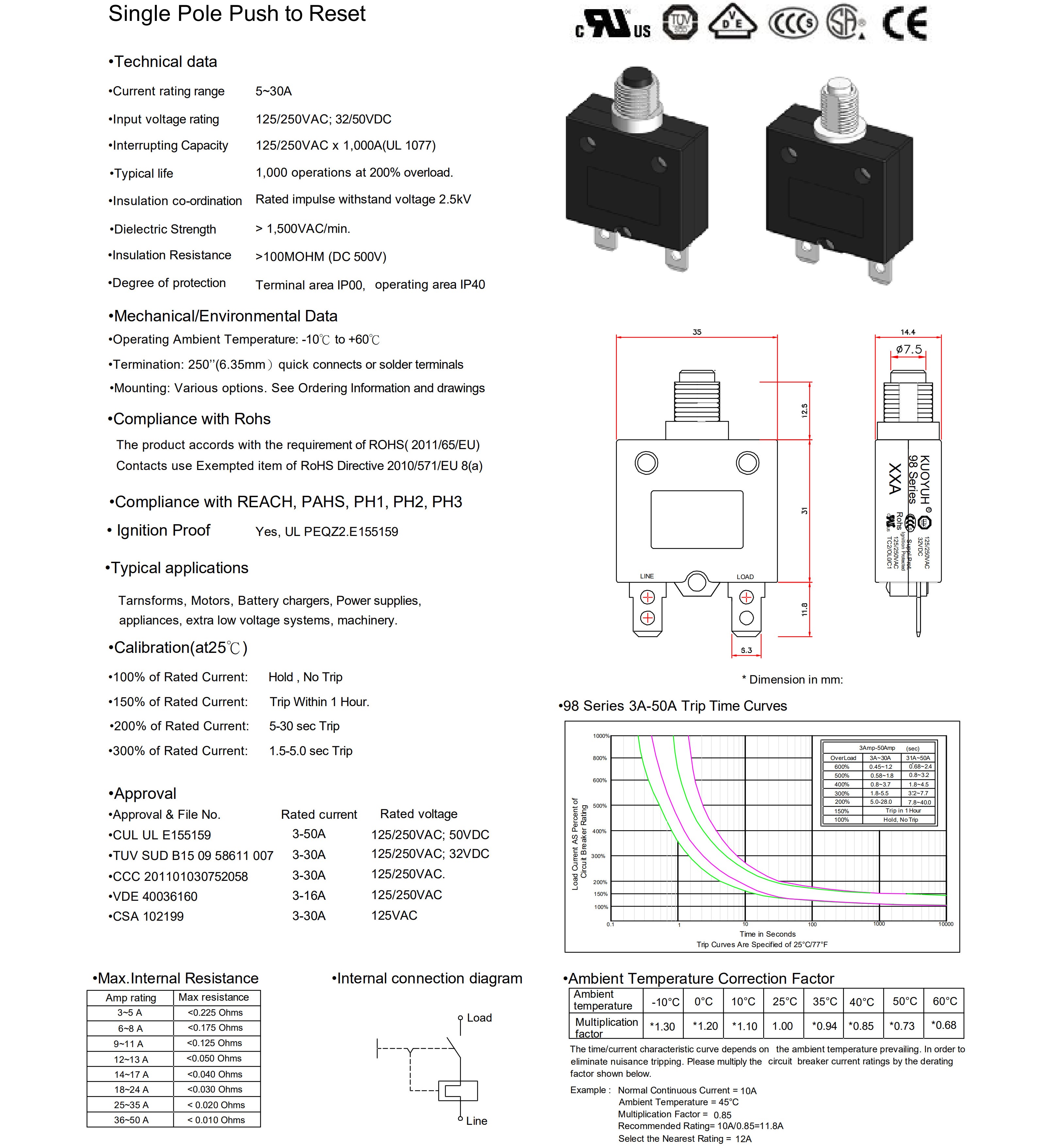

98 Series Thermal Circuit Breaker-
產品規格
額定電流:3A_30A
輸入電壓(lInput PoWer):125VAC/250VAC/32VDC50_60HZ
耐電壓強度(Withstand voltage strength):1500vAC/1min,
漏電電流≤0.5mA(1500VAC/min,the leaked current is less than ≤0.5mA)
絕緣電阻(lnsulation Resistance):500VDC1Min≥100M2
額定短路能力(Rated short_circuit capacity):125VAC/1000A，250VAC/1000A
額定通斷能力(Rated breaking capacity):6倍額定電流
(6 times rated current)
復位方式(Reset):手動復位(Manual Push Reset)
應用領域
適用各類電機，馬達、水泵、空壓機、清洗機、電動工具、攪拌機、家用電器、發熱電器等……
Apply to all kinds of motor, motor, water pump,
air compressor, washing machine,
electric tools, mixer, household
appliances, heating appliances, etc...
